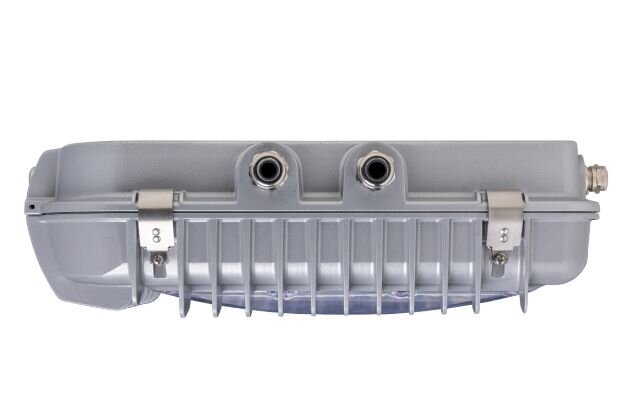

MineMaster SB Conveyor Area Light
| Brand | Pierlite |
|---|---|
| IP Rating | 66 |
| Impact Rating | 10 |
| Voltage | 240 V |
| Colour Select | No |
| Lumen Select | Yes |
| Surge Protection | Yes |
| MacAdam Steps | 3 SDCM |
| Luminaire Material | LM6 Aluminium |
| Warranty | 5 Yrs |
PRODUCT DESCRIPTION:
The MineMaster SB provides versatility with spigot or bulkhead mounting options & high quality of light for all applications, supplied with lumen select technology making it ideal for sites with a requirement for singular or multiple lumen outputs across multiple locations on a site, this allows for one common fitting with one product to order across the site.
- Multiple wattages/lumen outputs in one luminaire with a maximum of 70W.
- Amber with T2 Optics and 4000K with T2 or T5 optics provide 0.2% maximum upward light
- Diecast marine grade aluminium housing with chromate and RAL9007 powdercoat finish with 27mm to 34mmØ spigot mount or bulkhead base available with 8 cable entries
- 316 Stainless steel clips secured with T25 torx screws making it bird proof
- 6mm² terminal block, 10KV surge protection and fuse supplied as standard with 4m 1KV orange circular UV rated flexible cable
- Replaceable control gear gear trays available for onsite repairs / quick maintenance
- Bulkhead kit available with 8 cable entries, 10KV surge protection, fuse and 6mm² terminal block
- View Emergency Version
TECHNICAL SPECIFICATION
| IP Rating | Impact Rating | Voltage | Electrical Rating | Dimming Technology | Lifetime | Luminaire Colour | Luminaire Material | Beam Distribution |
|---|---|---|---|---|---|---|---|---|
| 66 | 10 | 240 V | Class 1 | DALI | 84,000hrs (L70/B50) | Grey RAL9007 | LM6 Aluminium | Asymmetric |
