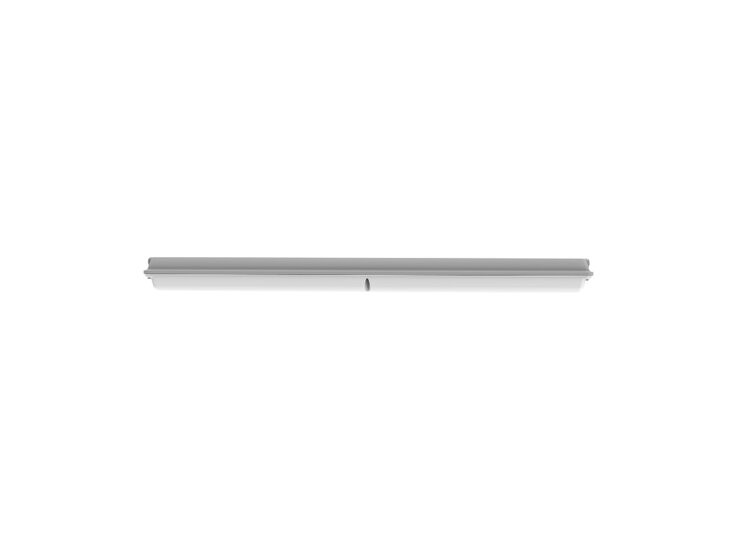

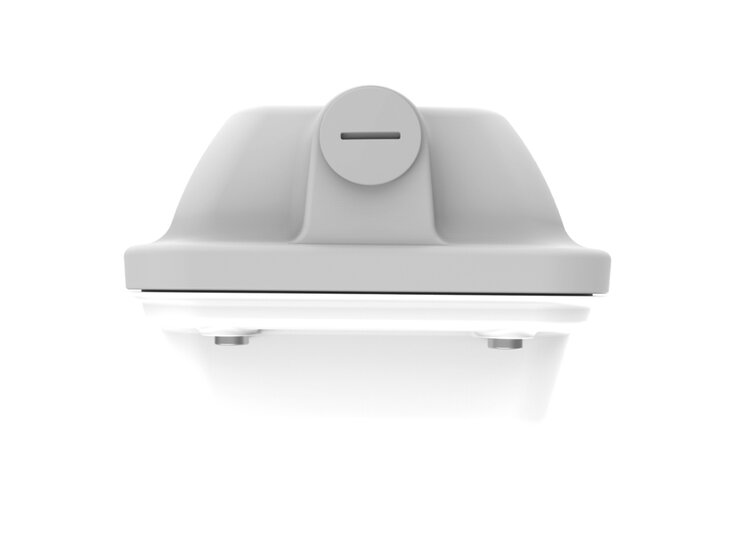

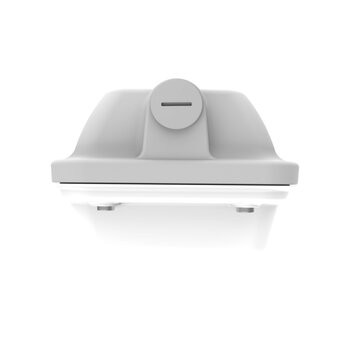

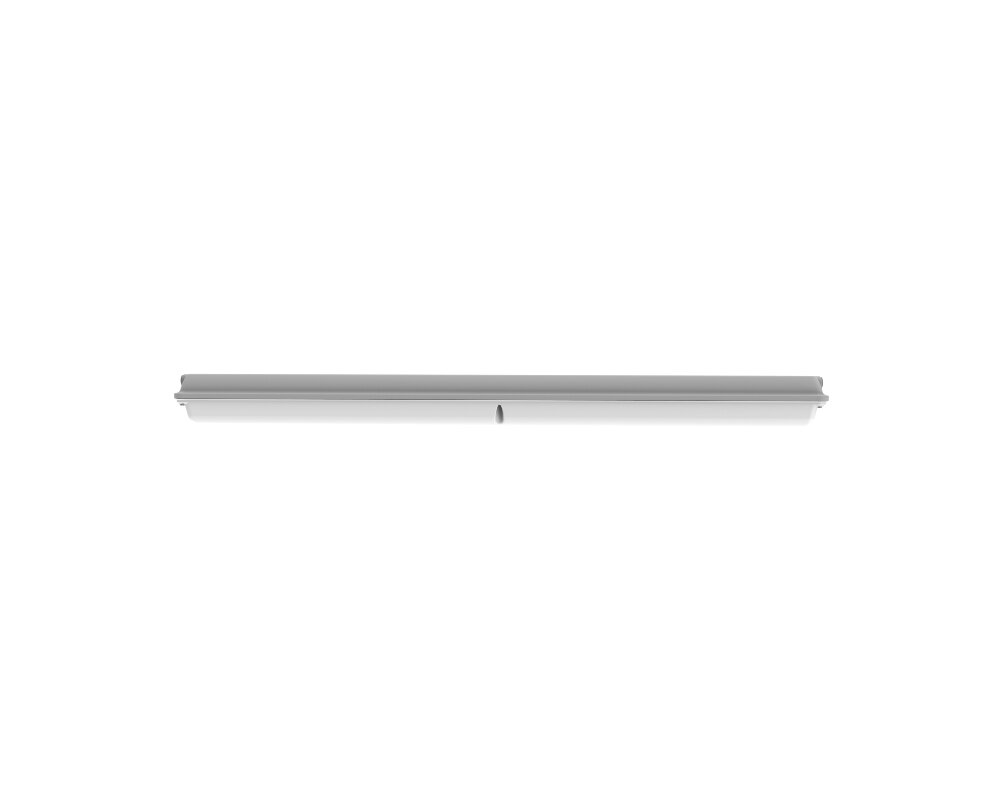

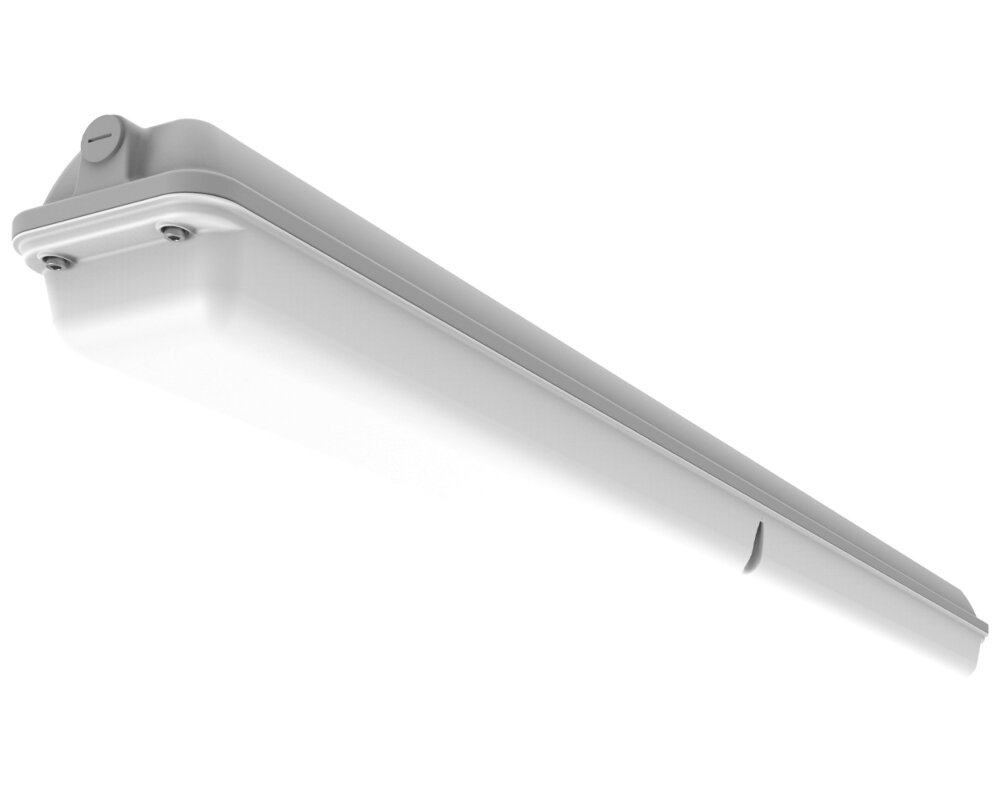

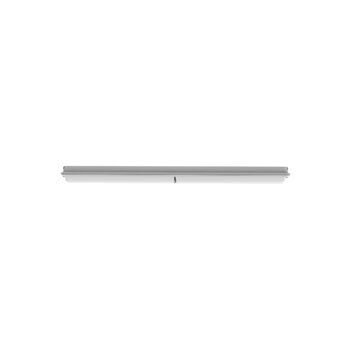

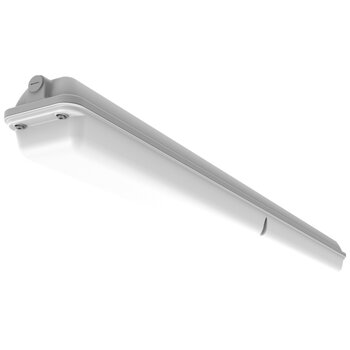

Vandalux Rail Weatherproof Batten
| Brand | Pierlite |
|---|---|
| IP Rating | 66 |
| Impact Rating | 10 |
| Voltage | 240 V |
| Lumen Select | Yes |
| MacAdam Steps | 3 SDCM |
| Luminaire Material | Aluminium (Die Cast) |
| Warranty | 5 Yrs |
PRODUCT DESCRIPTION:
The Australian designed Vandalux RAIL weatherproof range has a proven and trusted history since the early 1970s for being tough for all levels of heavy industrial and public applications including transport, heavy industry and high vandalism / secure areas where high surge immunity is required. The 6mm² terminal block, additional surge protection, replaceable fuse and control gear has been selected to provide simplification, efficiency and versatility with Lumen Select Technology in the same traditional fitting allowing for easier and faster installation allowing for the same appearance throughout your installation. Replaceable retrofit kits and gear trays are available for when upgrades are required onsite.

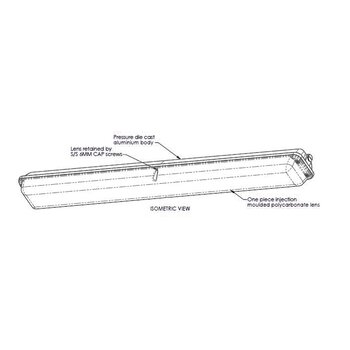

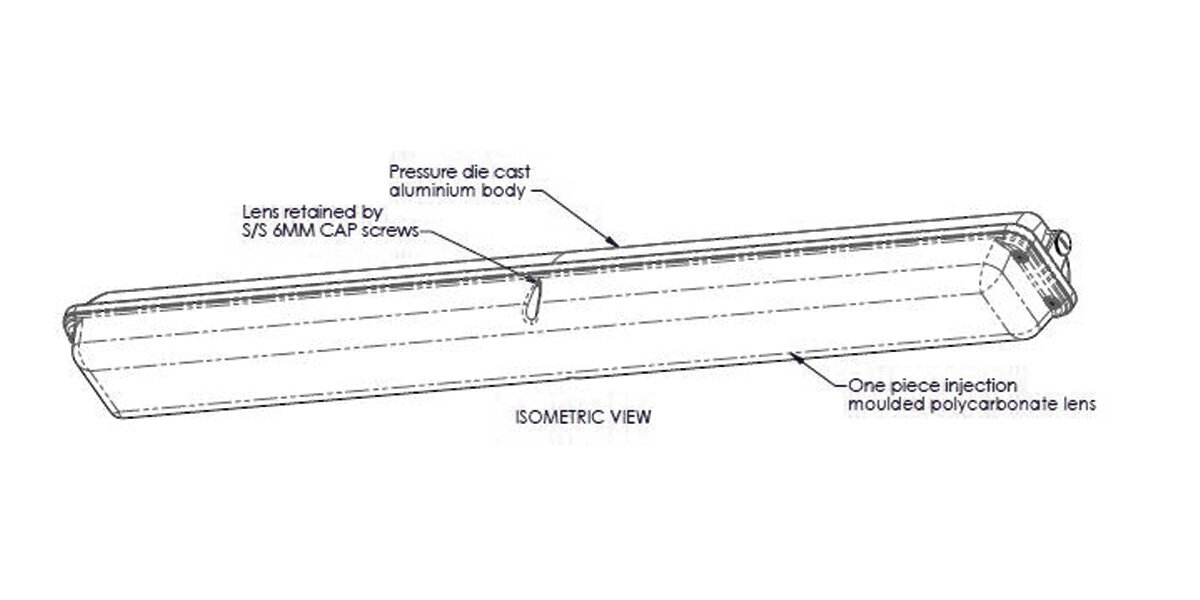

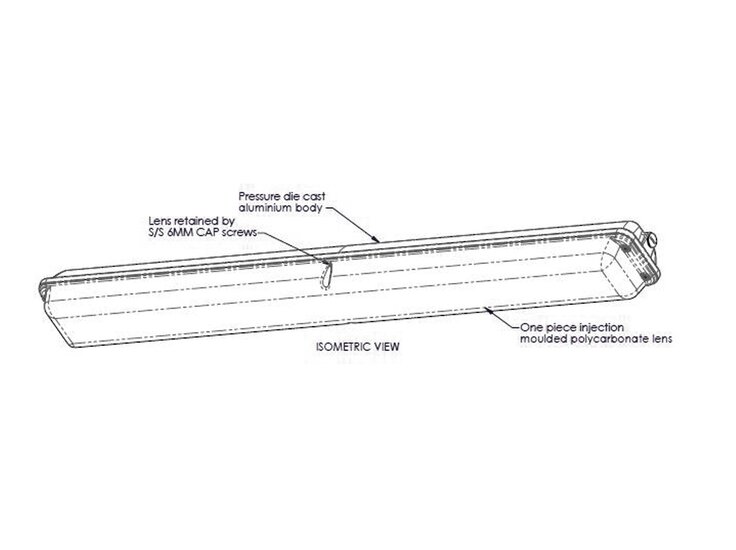

- Chromated pressure die-cast LM6 marine grade aluminium body with RAL9007 powder coated paint finish and robust frosted polycarbonate lens resist impact & abuse (clear lens available)

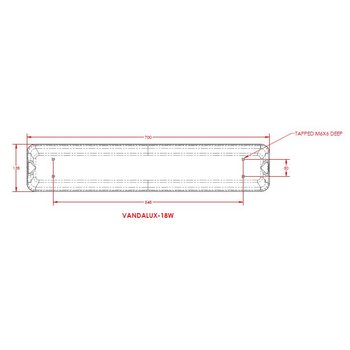

- Mulitple wattages/Lumen outputs in 1 fitting, Two sizes available 4FT (22W, 30W, 37W, 53W, 63W) and 2FT (16W, 20W, 28W, 33W)
- Large 6mm² terminal block, Samsung LEDs and European DALI2 driver, 10KV surge immunity and replaceable fuse

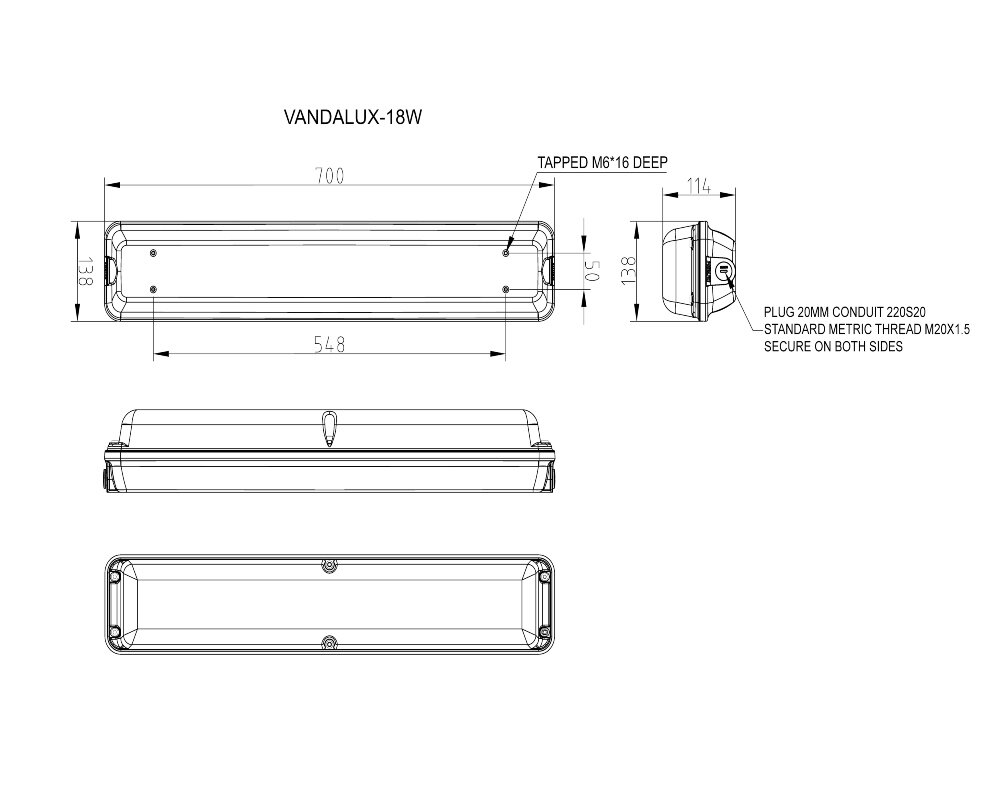

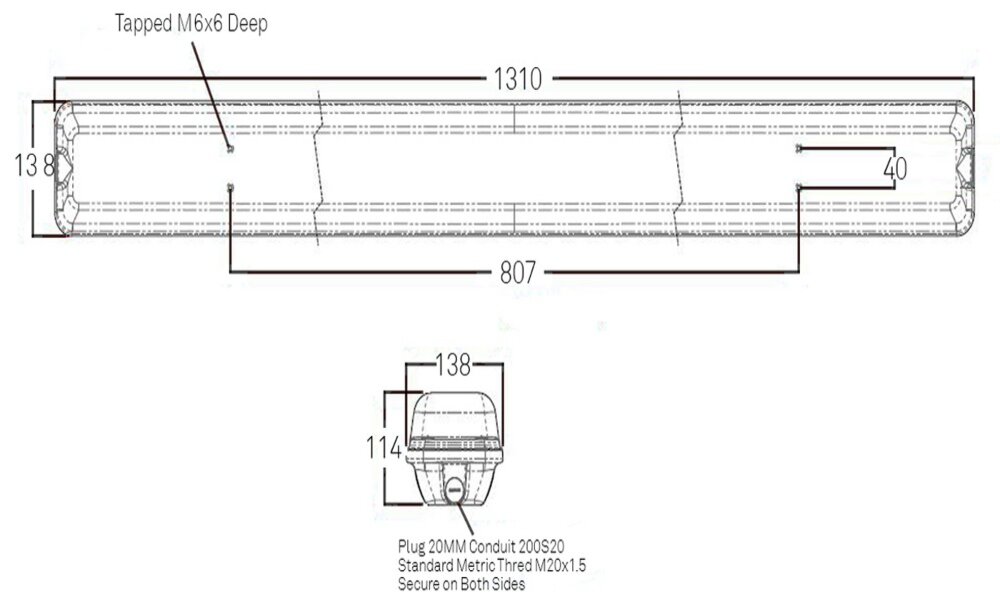

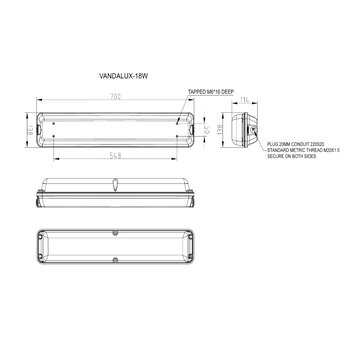

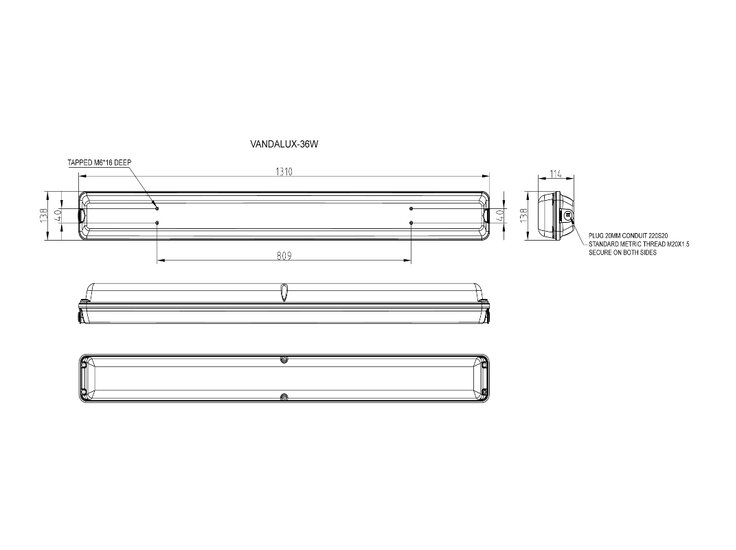

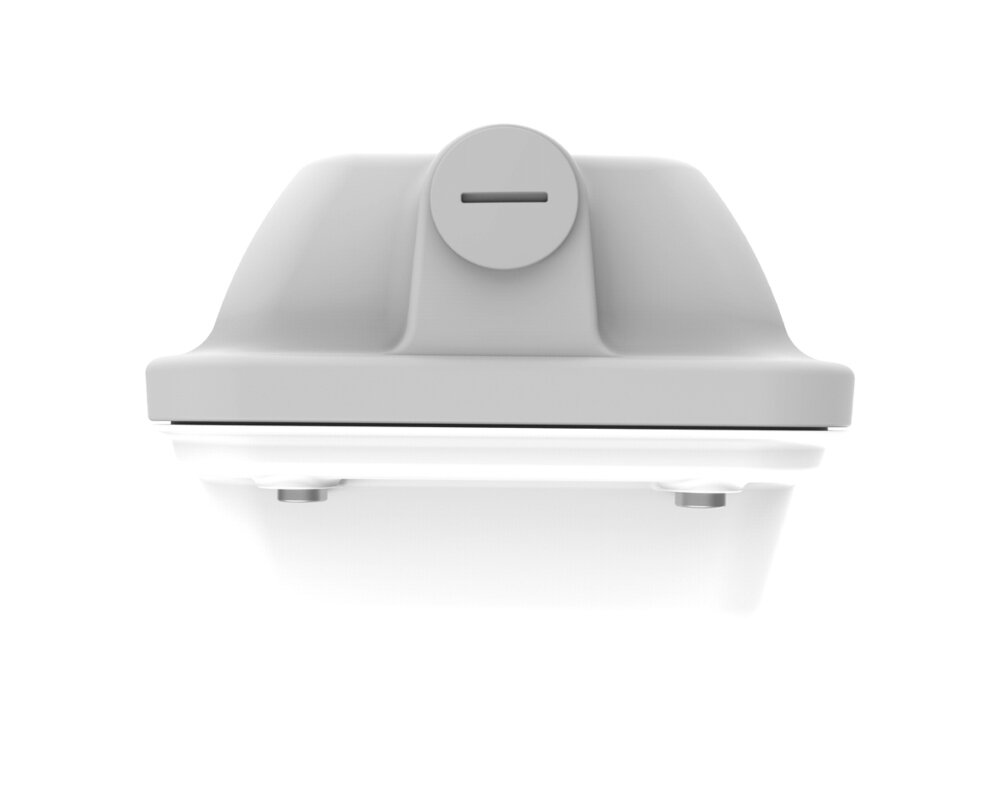

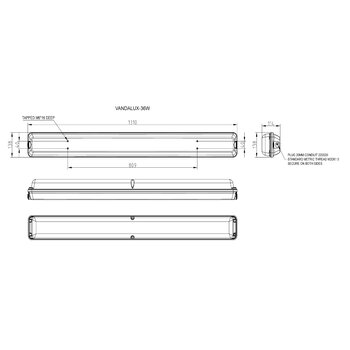

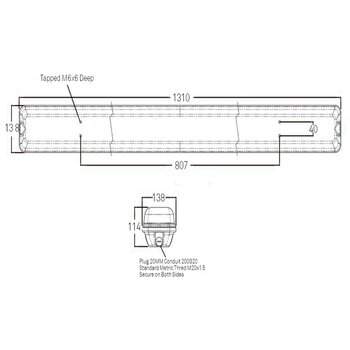

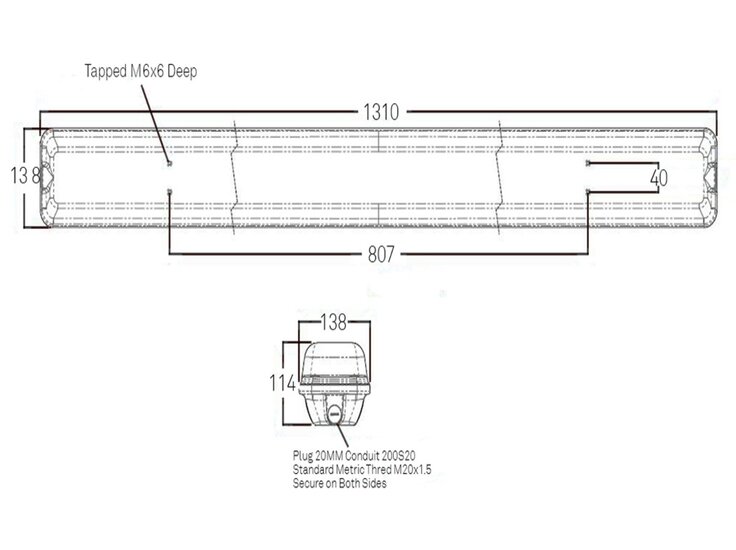

- 20mm screwed cable entries on the end of the housing and muliple drill points in the back of the housing for cable entries. 25mm cable screwed cable entries available upon request.
- Replaceable gear tray and retrofit kits available as replacement for older LED and flourescent control gear
- Large range of mounting accessories available up on request.
- View Emergency Version
TECHNICAL SPECIFICATION
| IP Rating | Impact Rating | Voltage | Electrical Rating | CCT | Dimming Technology | Lifetime | Luminaire Colour | Luminaire Material | Beam Distribution |
|---|---|---|---|---|---|---|---|---|---|
| 66 | 10 | 240 V | Class 1 | 4000 | DALI | 72,000hrs (L70/B10) @ 50⁰C | Grey RAL9007 | Aluminium (Die Cast) | Symmetric |
