Smart Scan Sensor
| IP Rating | 20 |
|---|---|
| Sensor Type | HD PIR |
| Voltage | 240 V |
| Electrical Rating | Class 2 |
| Installation Type | Recessed |

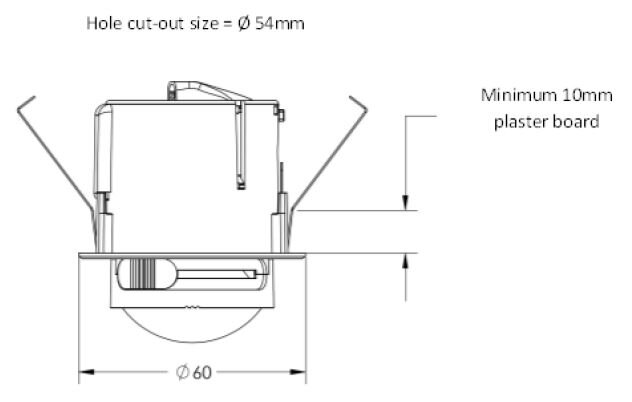

| Dimensions | L60 x W45 x H130.50 |
| Integrated Light Level | Yes |
| Warranty | 2 Yrs |
PRODUCT DESCRIPTION:
Pierlite Smart Scan flush mount sensor package consisting of a small 360 degree passive infrared sensor head and a control/relay module.
- Recessed Flush Mount 360 degree PIR Presence Sensor with one & two channel control module option
- Patented push to reveal sensor controls for simple setup and reliable operation
- 2 channel modules allow the sequence control of multiple appliances such as bathroom lights & fans
- Adjustable timing program
- Easily accessible setting dials by simply clicking the head in & out
- Flame retardant polycarbonate body conveniently packed with remote driver
- 864 fields of view, designed for both minor and major movement
- 360 degree detection zone up to 7m diameter at mounting height of 2.7m
TECHNICAL SPECIFICATION
| Optical Fields of View (FOV) | Sensor Type | Integrated Light Level | Major Motion Detection Range | Minor Motion Detection Range |
|---|---|---|---|---|
| 864 | HD PIR | Yes | 7 | 2 |
