Ecoset 180 Weatherproof Sensor
| IP Rating | 65 |
|---|---|
| Sensor Type | PIR |
| Voltage | 240 V |
| Electrical Rating | Class II |
| Installation Type | Wall Surface Mounted |

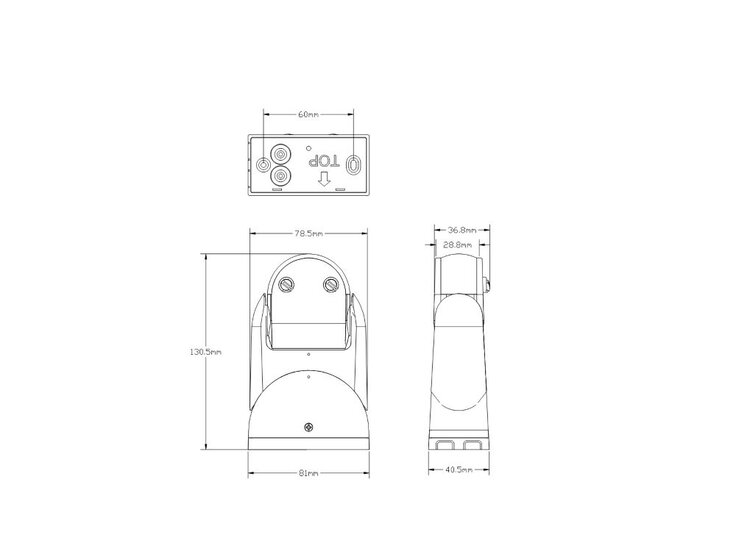

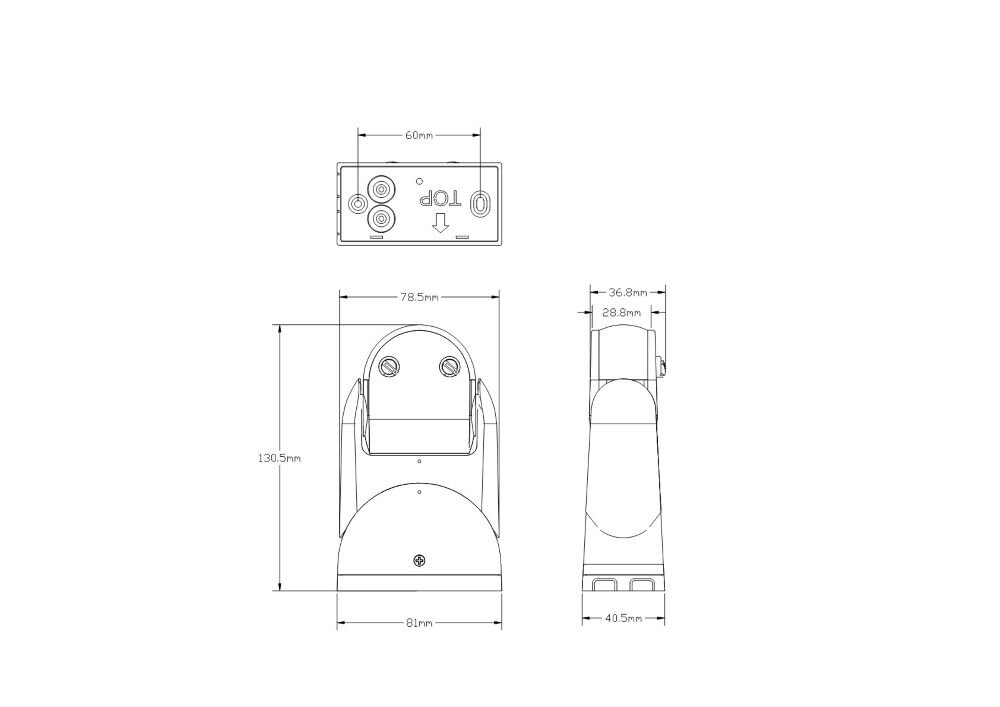

| Dimensions | L130.50 x W81 x H40.50 |
| Warranty | 5 Yrs |
PRODUCT DESCRIPTION:
The Eco Set 180 Weatherproof sensor is a high-performance, weatherproof IP65 rated standalone PIR sensor designed for reliable 180-degree motion detection. Built for durability and efficiency, this compact wall-mounted unit is the perfect solution for enhancing security and automated lighting in both residential and commercial environments.
- With a robust IP65 rating, this sensor is engineered to perform reliably in harsh outdoor conditions, resisting both dust and water ingress for long-term outdoor use
- The advanced PIR technology provides a comprehensive 180-degree field of view with a maximum detection range of up to 12 metres, ensuring precise and responsive motion coverage for large areas.
- The sensor is designed with adjustable time delays (10 seconds to 15 minutes) and lux settings (3 to 2000 lux). It supports a substantial electrical load, accommodating up to 300W for LED and 2000W for halogen/incandescent lighting.
- Designed for surface mounting on walls, this sensor features a manual override function for switchable lighting control and a large 3-wire terminal block (1.5mm² to 2.5mm²).
TECHNICAL SPECIFICATION
| Sensor Type | Major Motion Detection Range |
|---|---|
| PIR | 180 |
